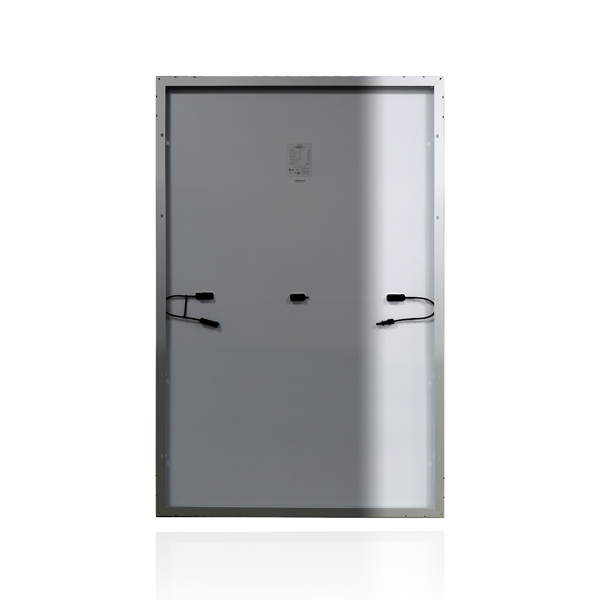

PV PANEL AE SOLAR METEOR 580W

Packaging:1 // 36
Nominal Power (W):580W
Years of Warranty:30 κατασκευής/ 30 απόδοσης

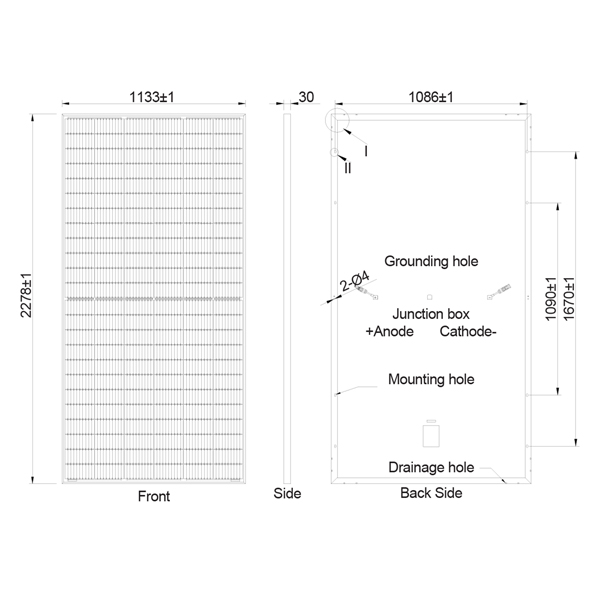

Length:2278mm
Width:1133mm
Height:30mm
Product Gross Weight (Kg):26.5Kg
CE Mark:NAI
Cell type:N-type TOPCon Technology, Half-cut cells, 182 mm
No. of cells:144
Glass:3.2 mm, high transmission, AR coated, tempered
Back cover:White Backsheet
Junction box:IP68, 3 Bypass Diodes
Frame:30 mm anodized Aluminium alloy
Max. PV Voltage (V):34,72
Cable:1 x 4 mm², 350 mm length or customized
Connectors:MC 4 / MC 4 compatible
Operating Temperature: - 40 to + 85
Temp.coefficient of Pmax: - 0,29
Standard test conditions:Irradiance 1000 W/m2, Cell temperature 25°C and air mass of AM1.5
Nominal Max. Power Pmax Wp:580
Maximum operating voltage Vmpp (V):43,04
Maximum operating current Impp (A):13,49
Open-circuit voltage Voc (V):50,86
Short-circuit current Isc (A):14,40
Module efficiency η (%):22,47
Power tolerance (W):0~+5
Maximum system voltage (V):1500
Maximum series fuse rating (A):25
Normal module operating tamperature (NMOT):Irradiance 800 W/m2, Ambient temperature 20°C, air mass of AM1.5 and wind speed of 1 m/s
Nominal Max.Power Pmax Wp (NMOT):445,0
Maximum operating voltage Vmpp (V) (NMOT):40,13
Maximum operating voltage Impp (A) (NMOT):11,09
Open-circuit voltage Voc (V) (NMOT):48,40
Short-circuit current Isc (A) (NMOT):11,65
